The CoPilot 256 ink jet printer is designed to print superior quality hi-resolution characters on either porous or non-porous surfaces. With up to 2.8” of total print height and the ability to print on both sides of the substrate in a single pass, the CoPilot 256 is designed to work as an integral part of your day-to-day packaging operation.

The CoPilot 256 utilizes oil-based or solvent-based inks for printing on a wide range of porous or non-porous substrates.

The system has the flexibility to be configured to print horizontally, at an angle, or in down shooter position.

A 4.3” full color touchscreen provides access to the systems internal messages and print functions.

The bag ink agitator system is an ideal solution for users printing with pigmented inks.

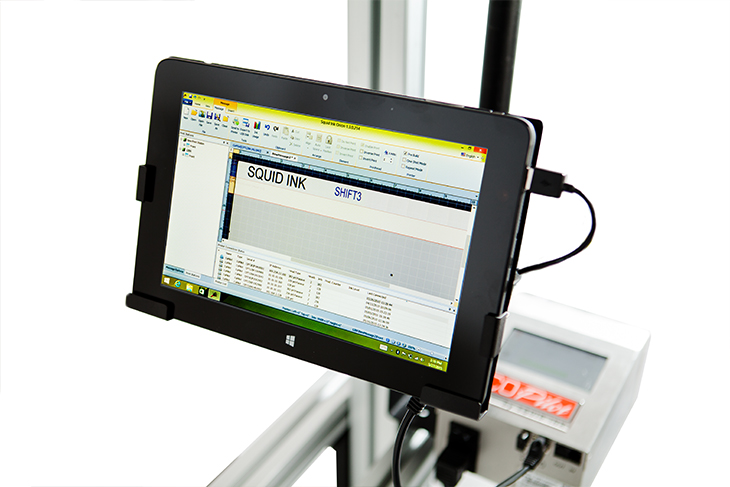

Manage messages wirelessly using the optional 10.1” full color touchscreen with Orion Software

BENEFITS
SYSTEM
SOFTWARE
OPTIONAL ACCESSORIES

BENEFITS OF THE COPILOT 256

CoPilot 256 uses proven Xaar piezo technology resulting in razor-sharp print
Available in either oil-based for porous applications or solvent-based for non-porous applications
Print up to 1.4″ of hi-resolution characters, razor-sharp text, scannable bar codes, and great looking logos at 185 dpi from a single print head
CoPilot 256’s 4.3″ full color touchscreen provides access to the system’s internal messages and print functions
Compatible with Squid Ink’s easy-to-use Orion™ message creation PC software

SYSTEM SPECIFICATIONS

Print Technology -Piezo impulse printhead technology
Maximum Print Height – 1.4” per printhead, 2.8” total
Vertical Print Resolution – 185 dpi capable of printing razorsharp graphics, small character text and scannable bar codes
Horizontal Print Resolution – 205 dpi
Print Speed – Up to 135 feet/min. (41 m/min.) @ 205 dpi
Time & Date – Internal real time clock with battery back-up
Product Sensor – External diffuse beam photocell standard
Communication Interface – One USB host and one Ethernet input
Touchscreen – 4.3” (10.9 cm) full color touchscreen display
Ink Cartridge Volume – 500ml cartridge or bag
Low Ink Indicator – Message alert on touchscreen; LED light beacon optional
Substrate Capabilities –Porous and Non-Porous surfaces
Electrical Requirements – 100 – 240 VAC, 50/60 Hz
Operating Environment – 34°F – 104°F (1° – 40°C)
Agency Certifications – CE, TUV, FCC

SOFTWARE SPECIFICATIONS

Time & Date – Full time and date functionality including expiration date and Julian Dates
Item Numbering – Sixteen counters, one of which can be a daily counter and production counter
Shift Codes – Four programmable shift codes with automatic rollover
Bar Codes – All standard bar codes including 2D
Fonts – Arial, Arial Bold, Arial International, Arial Monospaced, Courier, Tahoma Bold and Lucida resident fonts for use in variable data elements. Static elements in any Windows® font
Logos – Most image files supported with Orion Graphical Interface Software
Printing Features – Reverse, invert, rotate, repeat, print on/off button
Message Length – Up to 180”
Number of Messages – 4GB storage space will store approximately 1000+ messages
Ink Usage – Shown in Orion™ PC Software
User Data Prompts – Prompts for user input at start of print job by manual input on touchscreen
Bluetooth Connectivity – For connectivity with Bluetooth keyboards
Wireless Connectivity – For wireless connection between PC or tablet and printer controller
Database Capability – Ethernet communication protocol for external communication
Languages – English, Spanish, German, Chinese, Japanese, Korean, Russian

OPTIONAL ACCESSORIES

Encoder – For operation with variable speed conveyors
Bar Code Laser Scanner – Allows scan and print message retrieval
External Light Beacon – Indicates low ink levels
Wireless USB Device and Router – For wireless connectivity
Windows Tablet – Pre-loaded with Orion software; includes mounting bracket with swivel arm, USB to ethernet cable and stylus
Conveyor Mounting Bracket – Provides stable mount to conveyor or other material handling equipment
Floorstand – Includes mounting brackets and legs with leveling feet; 59” (1.5m) total height
Pigmented Ink Agitation System – Allows for printing of pigmented inks
Starter Kit – Includes ink, cleaner and flush solution, printhead wipes, hand cleaner and latex gloves
