Laser Printers

SQ-10 CO2 Laser Coding System

Application Versatility

• Permanent coding of text, time and date, bar codes, serial numbering and more
• Quick and easy installation for both stationary and moving products
• Easily fits into production environments where space is limited

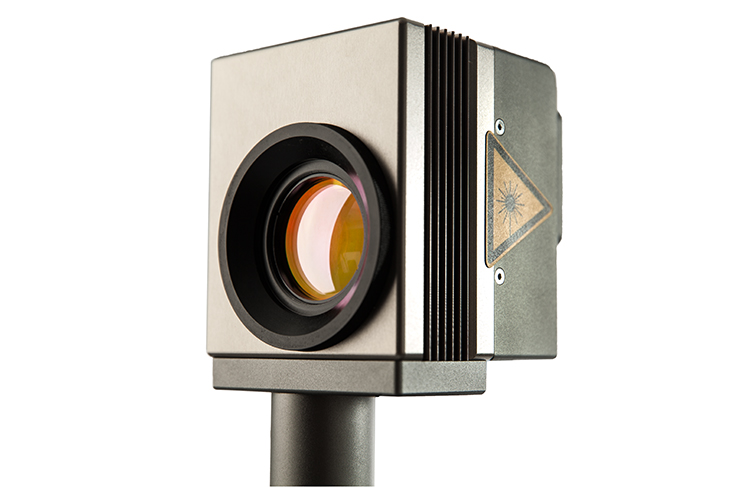

• Laser head can be rotated 90° in less than 5 minutes

Reliable & Economical

• No ink/consumables for lower cost of ownership
• Clean and eco-friendly coding system
• Rugged cast aluminum controller body
• IP54 rating ensures maximum reliability and uptime in demanding applications
• Integrated key switch and interlock relay for increased safety on the production floor

High Quality Code Generation

• Scribing technology produces non-dot matrix, razor sharp marks on a variety of substrates
• Ability to mix different fonts and logos in a single message
• Discrete coding ability for anti-counterfeiting and traceability
• Ideal coding alternative where CIJ systems are not practical

Easy to Start, Simple to Run

• All-in-one design for fast installation and line changes

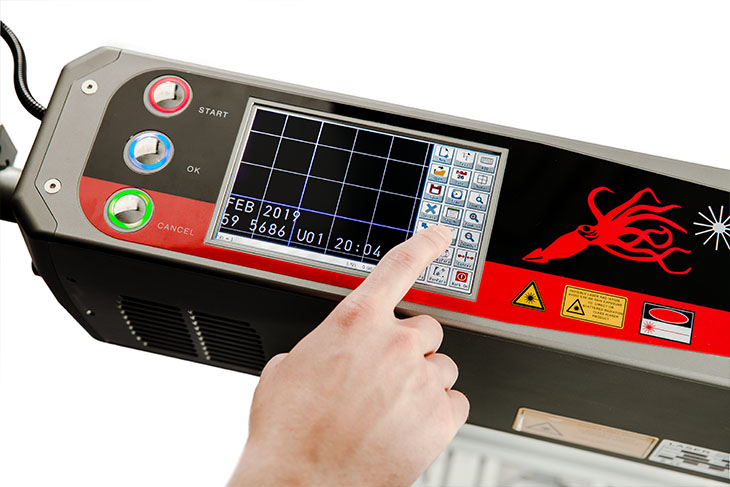

• Easy to use touchscreen software built right into controller
• Optional 10” touchscreen controller for remote system programming where space is limited
• Intuitive system includes focus finder and code area preview window on product during setup; enables initial laser marking setup within minutes
• Easily configurable in a variety of angles with optional mobile stand
• Optional fume extraction systems available that connect directly to SQ-Laser systems

FOR FURTHER ENQUIRY CONTACT US
BENEFITS OF THE SQ-10
  • CO2 marking system
  • 10W model
  • Static or continuous marking modes
  • No inks or solvents – environmentally friendly and cost-effective
  • Marks on plastic, paper, cardboard, plastic, and more
SYSTEM SPECIFICATIONS
  • Print Technology – CO2 laser coding system, full sealed RF-excited metal tube
  • Laser Wavelength – 10.6μm
  • Laser Galvanometer – High-precision 2D high-speed scanning galvanometers
  • Cooling Method – Atmospheric air-cooled
  • Dust Way – Sealed
  • Power Consumption – 500W – 1000W (110VAC, 60Hz)
  • Marking Focal Length – 100mm – 190mm
  • Position Accuracy– 0.01mm
  • Minimum Line Width – 0.1mm
  • Marking Area – 50mm X 50mm – 175mm X 175mm
  • Assembly Line Speed Support – <120m/min
  • Marking Speed – 800 – 1000 characters/second
  • Character Size – Adjustable in marking range
  • Marking Line Number – Code Rotation – 0 to 360°
  • Software Features – Counter, lot counter shift code, time and date, expiration date, 2D and linear bar codes
  • Operating Languages – English and Chinese
  • Cabinet Construction – Heavy duty cast aluminum
  • Cabinet Dimensions – 29” (74cm) L x 6.25” (16cm) W x 7.25” (19cm) H
  • Electrical Requirements – 90 – 240VAC, 50/60Hz
  • Operating Environment – 40°F – 105°F (5°C – 40°C)
  • Humidity Range – 10 – 90% relative humidity, non-condensing
  • Packaged Weight – 56 lbs. (25kg)
OPTIONAL ACCESSORIES
  • Print Trigger – Optical, fiber optic, ultrasonic, laser, metal proximity, capacitive proximity
  • Encoder – For operation with variable speed conveyors

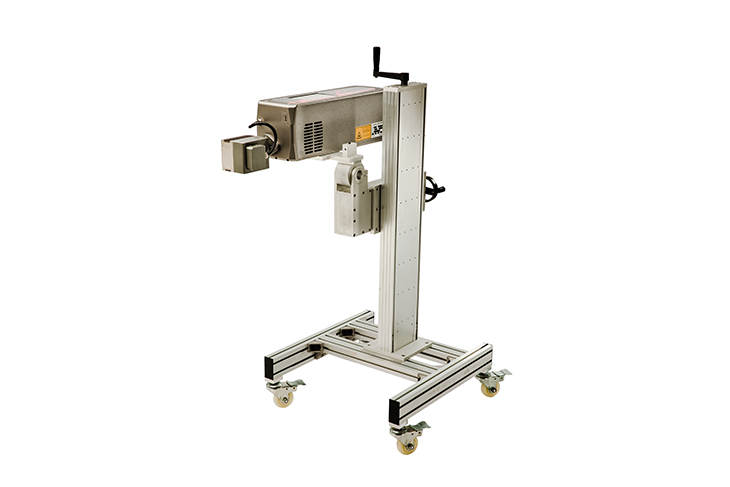

  • Mobile Stands – Heavy duty stand with ability to rotate laser controller in any direction and easily raise and lower marking machine by a single operator; includes casters for easy transportation within plant
  • 90 Degree Head Pivot Extension – Mirror assembly that allows marking head to point lens in line with unit axis
  • Hand Held 10” Touchscreen Controller – Allows complete control of the system when access is limited due to mounting requirements
  • Laser Fume Extraction Systems – SQ-LFX or SQ-LFX PVC for the proper extraction of laser application fumes
  • Low Ink Light – Alerts users of low ink situations
  • Installation and Training – On-site installation and training available
