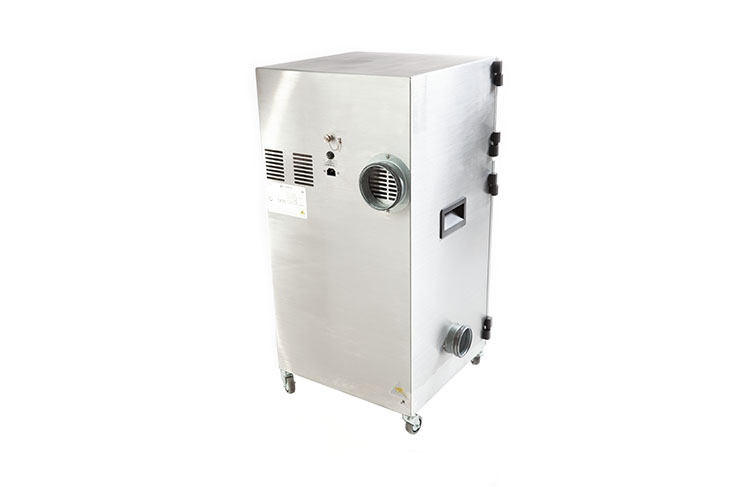

SQ-LFX Laser Fume Extraction

Intelligent Operation with IQ

The SQ-LFX has been enhanced with the highest grade HEPA and carbon filter technology and packs a powerful range of unique features into one compact unit. The informative graphic display gives operators a clear view of the operation to provide a quick-read visual display of how the system is functioning. For further insight into your operation, the system provides a cache of analytical data, enabling users to view performance and operating parameters for evaluation purposes.

Performance With Safety In Mind

The SQ-LFX design features keep your air filtration system running at peak performance levels while reducing your maintenance downtime. Automatic Flow Control technology maintains a constant extraction rate that ensures the safe capture and removal of hazardous fumes by balancing the system’s airflow rates with the type, depth, and surface area of SQ-LFX’s carbon filters. To increase your filter life, the unit is designed with Adjustable Air Flow that allows the system to be easily adjusted for various applications. SQ-LFX was also designed with Reverse Air Flow to prevent condensation while prolonging filter life.

FOR FURTHER ENQUIRY CONTACT US
FEATURES OF THE SQ-LFX
  • Automatic electronic flow control – maintains a constant extraction rate even as the filter becomes blocked
  • Adjustable airflow
  • Clear and informative graphic display
  • Gas and particle sensors on the exhaust
  • Low capital and running costs
  • Quick change patented Labyrinth pre-filters deliver longer filter life
  • Submicronic (HEPA) filtration removes 99.997% of particles down to 0.3 microns
  • Activated carbon filtration removes harmful gas
  • Simple to install and quiet in operation
  • Easy to relocate and precision made from stainless steel
  • High performance brushless motors
  • CoPilot uses proven Xaar piezo technology resulting in razor-sharp print
  • Solvent-based for a variety of applications such as pulp, PET, foam egg cartons, glossy or uncoated cases, and more
  • Print up to .7″ of hi-resolution characters, razor-sharp text, scannable bar codes, and great looking logos at 185 dpi
  • CoPilot’s 4.3″ full color touchscreen provides access to the system’s internal messages and print functions
  • Compatible with Squid Ink’s easy-to-use Orion™ message creation PC software
TECHNICAL SPECIFICATIONS
  • Voltage – 120V
  • Wattage – 1.2KW
  • Frequency – 50Hz /60Hz
  • Cabinet Height – 34.8” (885mm)
  • Cabinet Width – 17.9” (455mm)
  • Cabinet Depth – 20.4” (517mm)
  • Cabinet Weight – 110lbs (50kg)
  • Sound Level – <60dBa
  • Airflow – 330m3/h

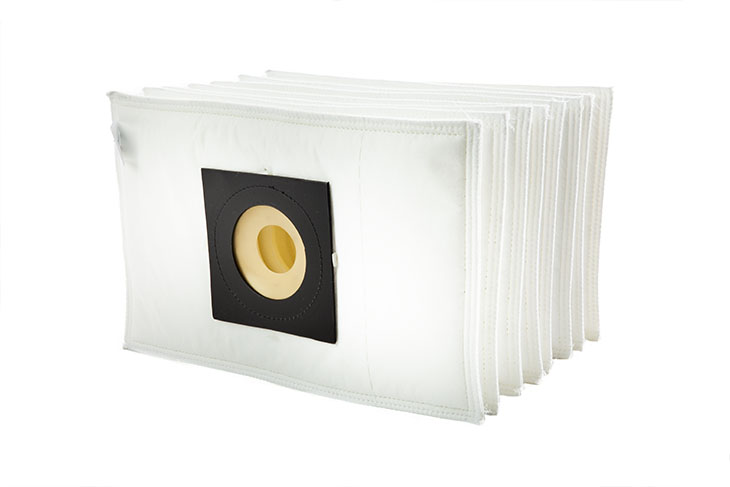

LABYRINTH PRE FILTER
  • Extends the life of the main filter by capturing larger particles before they reach the HEPA filter

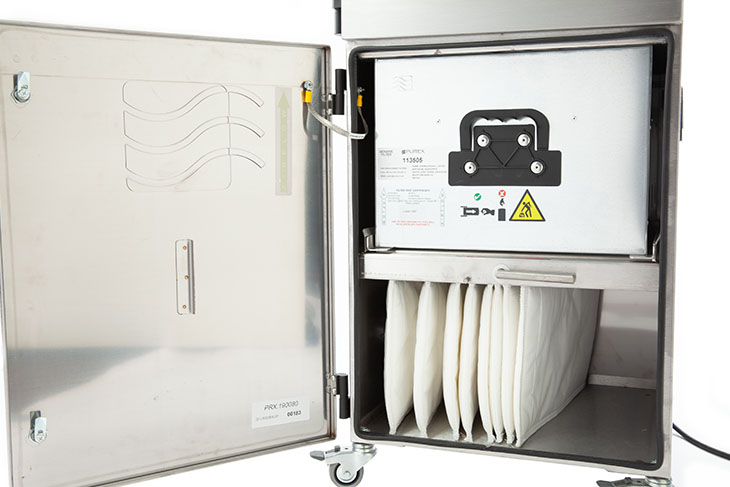

  • Fits neatly under the main filter in integral Purex extractors
  • Graduated fiber matrix delivers excellent particle capture capacity – up to 20 times more than a standard filter
  • Ideal for medium-high volume applications
  • Contains the particles inside for clean and simple disposal
  • Composite material available for extra filter life and filtration down to 0.5 micron
  • Standard captures particles to 3 micron at efficiency of 60 to 80%
  • Composite captures particles to 1 micron at efficiency of 80 – 95%

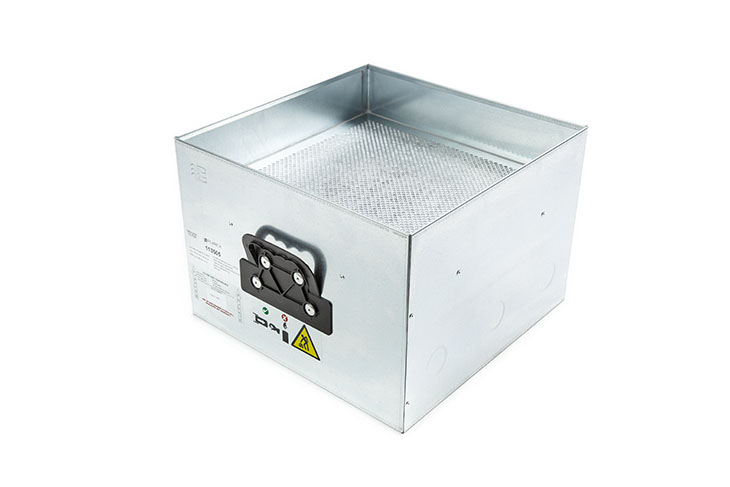

HEPA/CHEMICAL MAIN FILTER
  • HEPA (high efficiency particulate air) filter elements are precision manufactured from a pleated material that incorporates reinforcing strips which separate the pleats and help prevent airflow vibration or collapse
  • Equalization plates are used between the layers of media to further reinforce the filter housing and to distribute the airflow across the filter to ensure all of the filter media is used
  • Filters small particles down to 99.997% at 0.3 microns in size and absorbs a wide variety of gases and vapors
